Chinese Puzzle Balls: Carved, Never Assembled

Quick answer: a Chinese puzzle ball is a set of concentric spheres, one inside another, each turning freely, all carved from a single block. Nineteenth-century Canton examples reach 20 to 25 layers. In China they are known as the Ball of the Devil's Work. There is nothing to solve; the puzzle is how it was made.

Best for: anyone who thinks they understand what skilled handwork looks like.

Every other object we write about is a problem the maker sets you. This one is a problem the maker set themselves, and you are only here to be astonished by it.

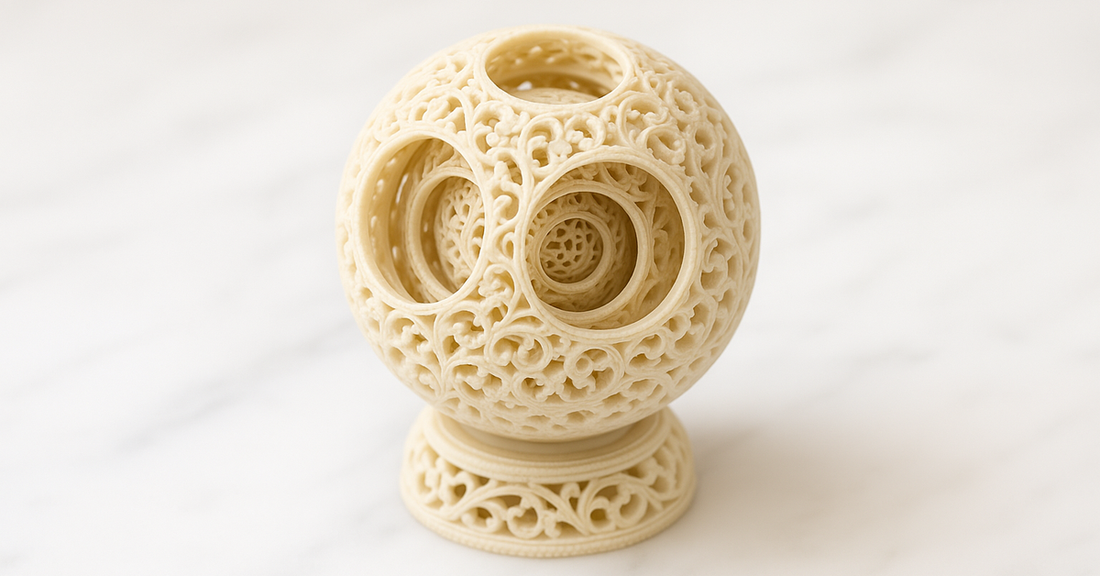

What Is a Chinese Puzzle Ball?

A sphere containing other spheres. Each layer is complete, pierced with decorative openwork, rotates independently, and is entirely free of its neighbours. You can turn the inner ones with a needle through the holes.

The crucial fact is that nothing is assembled. The layers were never separate pieces. The whole thing began as one solid block and every sphere inside it was cut free through the holes in the surface.

That is why the name is misleading in English. It is not a puzzle in the sense of an interlocking puzzle: there is no solution, no sequence, nothing to take apart. The word is doing the same job as in a conjuring trick.

How Are They Carved?

From the outside in, with a chisel that works around corners.

The carver begins with a sphere of ivory and drills a set of evenly distributed conical holes toward the centre. The holes are the only access there will ever be.

Then, using an L-shaped chisel inserted through those holes, they cut concentric grooves at a fixed depth, working each hole in turn. When a groove meets itself all the way round, a complete sphere has been separated inside the block and can turn freely. The carver then sets the chisel to the next depth and repeats.

Layers are freed before any decoration is cut, because once the inner spheres move they can be rotated to present a fresh surface through the holes. The decoration on the innermost sphere of a twenty-layer ball is carved through twenty layers of openwork, at arm's length, by feel.

How Old Are They?

Older than the ones in museums, and documented earlier than most people assume.

The oldest known example has only three layers and dates to the Song dynasty, 960 to 1279. The first written mention is in Cao Zhao's The Basic Criteria of Antiquity, 1388.

The explosion came much later and for a commercial reason. After 1760 the Chinese government confined foreign merchants to Canton, which concentrated an export craft industry in one city with access to raw ivory. Carvers competed on virtuosity, layer counts climbed, and the art peaked in the 19th century at twenty to twenty-five layers from a single piece.

The Qing court thought as highly of them as the export market did. The Lingnan school's work was described by the Inner Courts of the Forbidden City as the work of an artisan out of this world.

Why Is It Called the Devil's Work Ball?

Because the technique looks impossible, and for a long time the explanation was not widely known.

Confronted with a sphere containing twenty free-moving spheres and no seam anywhere, the natural conclusion is that it cannot have been made by hand at all. The Chinese name carries that sense of something beyond ordinary craft.

It is also a fair description of the labour. A single large ball represented months of work in which one slip destroys everything. There is no repair: a chisel through an inner layer ruins a piece that cannot be taken apart and fixed.

Why Was Ivory the Material?

Because almost nothing else would survive the technique, which is uncomfortable but worth understanding.

Carving a free sphere inside a block through a narrow hole requires a material with no grain direction. Wood splits along the grain, and a chisel working blind around a curve inside a block will find that weakness and break through into the layer you have already freed. One failure of that kind destroys months of work.

Ivory is dense, fine and effectively grainless, so it cuts equally well in every direction and holds a fine edge on thin openwork. It also polishes to a surface that shows detail at the scale these carvings work at.

That is why the technique concentrated where ivory was traded, and why modern makers working in wood generally attempt fewer layers. Resin and jade behave more like ivory in this respect, which is why they have become the usual substitutes rather than hardwood.

Can You Still Buy One?

Yes, with a serious caveat, and we are not the people to buy it from.

Antique ivory examples are heavily restricted by international trade law, and the restrictions exist for good reasons. Modern carvers work in wood, bone, resin and jade, and good contemporary multi-layer balls are still made, mostly in Guangzhou.

We make nothing remotely like it and could not: this is subtractive handwork at a scale that 3D printing makes trivial and therefore pointless. Printing nested spheres is a five-minute job and carries none of the meaning.

What Do We Make That Shares the Idea?

One idea does carry across, even though the craft does not: an object whose interior you can see into but never reach.

A6L and 6N are both built so the finished solid hides what is inside it, and the openings are the only way you ever learn the shape of the cavity. That is the puzzle ball's relationship with its own holes, inverted: there, the holes are how the inside was made; here they are how the inside is read. Both come from Osanori Yamamoto, who has spent a career on exactly this.

And if what you actually want is the astonishment rather than a problem to solve, the Impossible Dovetail Box is the nearest thing we sell: an object whose only question is how it can possibly exist, which is the puzzle ball's question too.

What we do share is the Chinese tradition it belongs to, covered in the Luban lock and the Chinese rings, and the printed versus handmade question it raises rather sharply. The range is mechanical puzzles.

Frequently Asked Questions

What is a Chinese puzzle ball?

A set of concentric spheres nested one inside another, each pierced with openwork and each turning freely. All the layers are cut from a single block, so nothing is ever assembled.

How is a Chinese puzzle ball carved from one piece?

The carver drills evenly spaced conical holes toward the centre, then uses an L-shaped chisel through those holes to cut a continuous groove at a fixed depth. When the groove meets itself, a complete sphere has been freed inside. The chisel is then reset deeper and the process repeats.

How many layers can a Chinese puzzle ball have?

Nineteenth-century Canton examples reach twenty to twenty-five layers from a single block. The oldest known example, from the Song dynasty, has three.

Why is it called the Devil's Work Ball?

Because the result looks impossible to have made by hand, with free-moving spheres inside and no seam anywhere. It also reflects the labour: months of work in which a single slip ruins a piece that cannot be taken apart and repaired.

Is there a solution to a Chinese puzzle ball?

No. It does not come apart and there is nothing to work out. The English name is misleading; the puzzle is how it was carved, not how to solve it.
